514009

514009

FEATURES AND BENEFITS

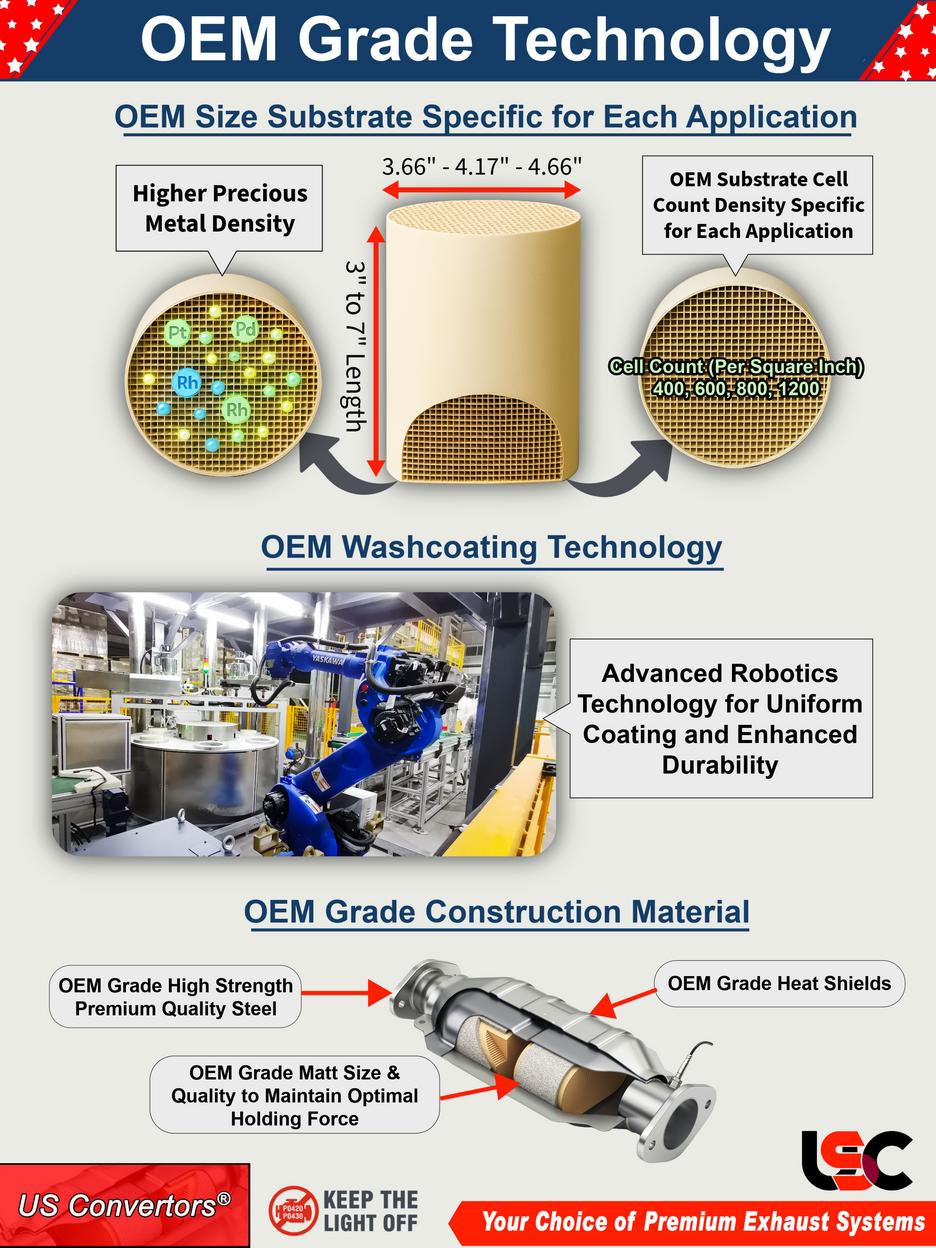

  1. OEM Grade Technology: Our products are engineered to meet or exceed OEM construction standards, delivering technology designed for superior durability and extended product life. We use OE-sized substrates and high-density precious metals, combined with advanced robotic wash coating and precisely infused alloys, to ensure peak catalyst performance and long-term reliability, making our brand the trusted choice for OEM-grade quality.
  2. Engineered for Tough Applications: We leverage proprietary, application-specific matrix-based catalyst technology to deliver outstanding performance, even under the most challenging conditions. Our streamlined product release process integrates Technical Service Bulletins (TSB's) and the latest regulatory emissions updates, providing reliable performance the First Time Right.
  3. Precision Perfected: All of our exact-fit products are built precisely using advanced robotic welding technology for a leak-free, accurate fit every time.
  4. Built to Last: Durability is engineered into every unit with high-strength stainless steel, precision laser welding, and advanced catalyst formulations. Each converter is subjected to 100% end-of-line inspection and rigorous leak testing to ensure uncompromising quality, all backed by OEM-equivalent warranty coverage for added confidence and peace of mind.
USC P/N 514009
Catalyst Technology ExtrmTech
Inlet Gasket 1
Inlet Type A 5 Bolt Welded Flange
O2 Port 1
Outlet Gasket 1
Outlet Type A 2 Bolt Welded Flange
Substrate Material Ceramic
Type Federal / EPA Direct Fit Manifold
Weight 13.20 lbs
Height 7.00"
Width 8.00"
Length 22.00"
Buyer's Guide 2006-2008 Toyota RAV4 , 2.4L L4 4WD, 2.4L L4 AWD &
2.4L L4 FWD;
2008-2015 Scion xB &
2.4L L4 [Front, N/A]

Interchange Data

Brand Part Number
AP Exhaust 641232
ATP Graywerks 101519
Bosal 099-1672
Catco 1107
Cateran 33331
Davico 17167
Dorman 674-966
Dorman 674966
Eastern Catalytic 40842
Magnaflow 51267
Toyota 25051-0H070
Toyota 25051-28340
Toyota 25051-28360
Toyota 2505128340
Walker Exhaust 16480
View full details
